C41Z Clamp-on Snow Guard

Description

Secure Attachment

No Set Screws

No Panel Penetration

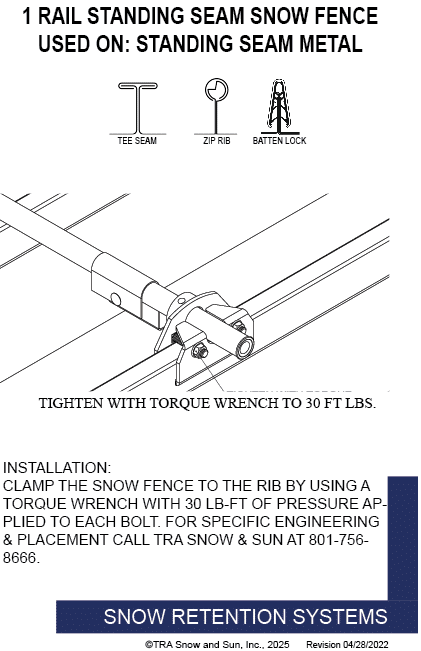

Used on: Standing Seam Metal Roofs



• Available for all rib types including: Single Lock, Tee Seam, Zip Rib, etc. under 1 3/4″ tall

• Accepts 3/4” fence pipe

• Allows for full installation without any penetration of the roof surface

• Powder coated to match roofing material color

• 3/8” Dia X 1-3/4” or 2” carriage bolt (2)

• Ice Flags (recommended)

TRA Snow and Sun’s Clamp-on Snow Fence are recognized for their quality and strength.  We manufacture in the heart of the Rocky Mountains and design our systems to retain heavy snow loads.  You can be confident the snow on your roof will stay in place.  Our Clamp-on Snow Fence fits most standing seam profiles using a safe, reliable and attractive design. Our exclusive attachment system, using under-the-hem clamping and bolting, provides superior strength while maintaining your manufacturer’s warranty. Its attractive appearance and proven performance make TRA Snow and Sun’s Clamp-on Snow Fences ideal for both commercial and residential projects.  Our Clamp-on Snow Fences are available in a variety of materials and color/finishes which provide a system that matches your roof type. And we are pleased to say that they are manufactured in the USA.



Custom Designs and Engineering

The Clamp-on’s are custom made to fit the following seam profiles. Just give us your x, y and z dimensions and we will manufacturer it for your seam profile. If the seam profile you have is not listed please submit your dimensions and we will let you know what is available. No crimping or folding. You give us the seam dimensions and we will manufacture it to fit.

At TRA Snow and Sun we engineer and lay out each project free of charge using many factors specific to your roof. We then provide you with the snow retention plan, layout and product detail. TRA Snow and Sun representatives will work with you to design the most efficient snow retention system. Fill out our Snow Retention Checklist to get started.

All Standing Seam Snow Fences have been tested from the fail point of the system. The holding strength is proven in their performance.

Dimensions

Length: 5 3/16″

Width: 3 1/16″

Height: 8 3/16″ (may vary based on seam profile)

Materials

• Steel: 3/16” (ASTM A1001 & ASTM A880)

• Copper: 1/4” (ASTM B152)

• Aluminum: 1/4” (ASTM B209)

• Weathering Steel (known as CORTEN®): 1/4” (ASTM A588)

• Stainless Steel 8 ga. (ASTM A240)

Colors/ Finishes

• Raw steel

• Electro-galvanized steel

• Hot-dipped galvanized steel

• Mill finish Aluminum

• Mill finish Copper

• Mill finish A588

• Powder coating available in many colors

Product (Downloads)

Product Data Sheet (.pdf)

Product Specification (.docx)
