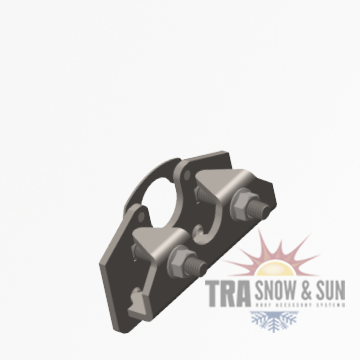

Description
Used on: Standing Seam Metal Roofs
• Available for all rib types including: Double Lock, Single Lock, Snap Lock
• Designed for 1.0″ tube (see small tube product data sheet)
• Allows for full installation without any penetration of the roof surface
• Powder coated to match roofing material colors
• Overall dimensions: 4.45”L X 2.21”W X DIM_B”H (see dimensions)
• Height of clamp varies based on rib type and height
• Ice Flags (recommended)
