C21Z Clamp-on

Description

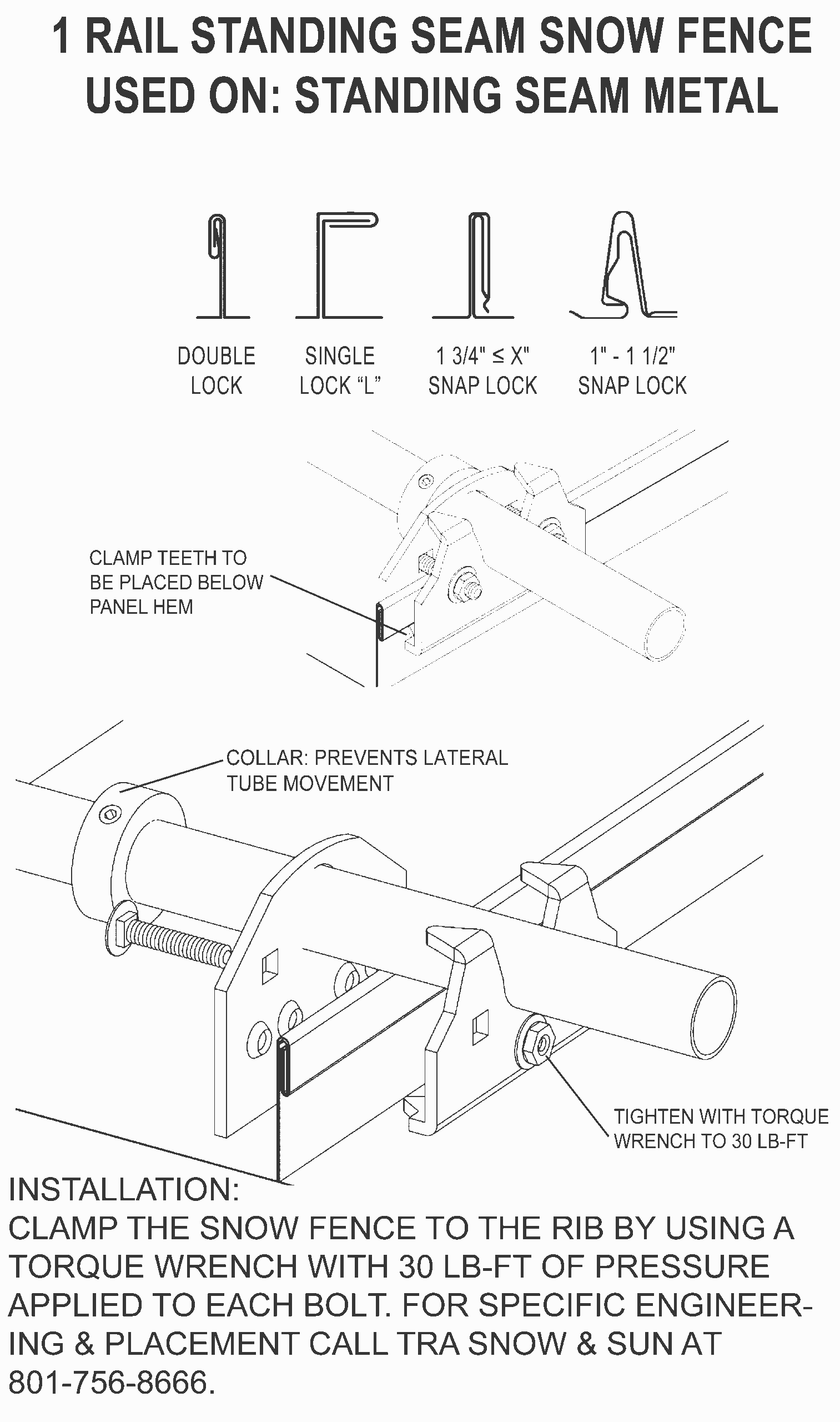

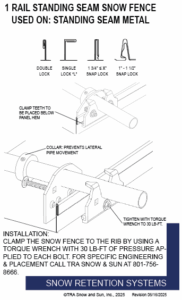

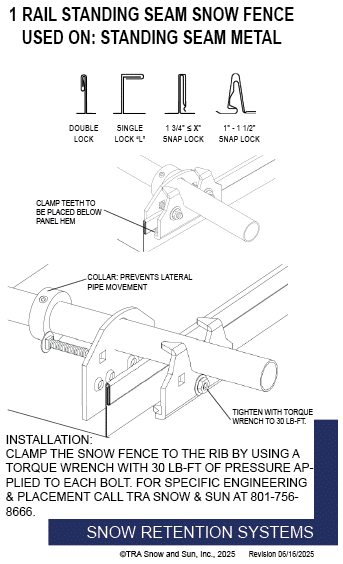

Used on: Standing Seam Metal Roofs

• Available for all rib types including: Double Lock, Single Lock, Snap Lock

• Designed for 1.0″ OD tube

• Allows for full installation without any penetration of the roof surface

• Powder coated to match roofing material colors

• Overall dimensions: 4.38″L X 1.19″W X VAR”H

• Height of clamp varies based on rib type and height

• Carriage bolt (2) 3/8” Dia X 1-3/4” or 2”

• Ice Flags (recommended)

Materials

  • Steel: 3/16” (ASTM A1011 & A880)
  • Copper: 1/4” (ASTM B152)
  • Aluminum: 1/4” (ASTM B209)
  • Weathering Steel (known as CORTEN®): 1/4” (ASTM A588)
  • Stainless Steel: 8 gauge (ASTM A240)

Colors/Finishes

  • Raw steel
  • Electro-galvanized steel
  • Hot-dipped galvanized steel
  • Mill finish Aluminum
  • Mill finish Copper
  • Mill finish A588
  • Mill finish Stainless Steel
  • Powder coating available in many colors

Product (Downloads)

Product Data Sheet (.pdf)



Product Specification (.docx)



Accessories

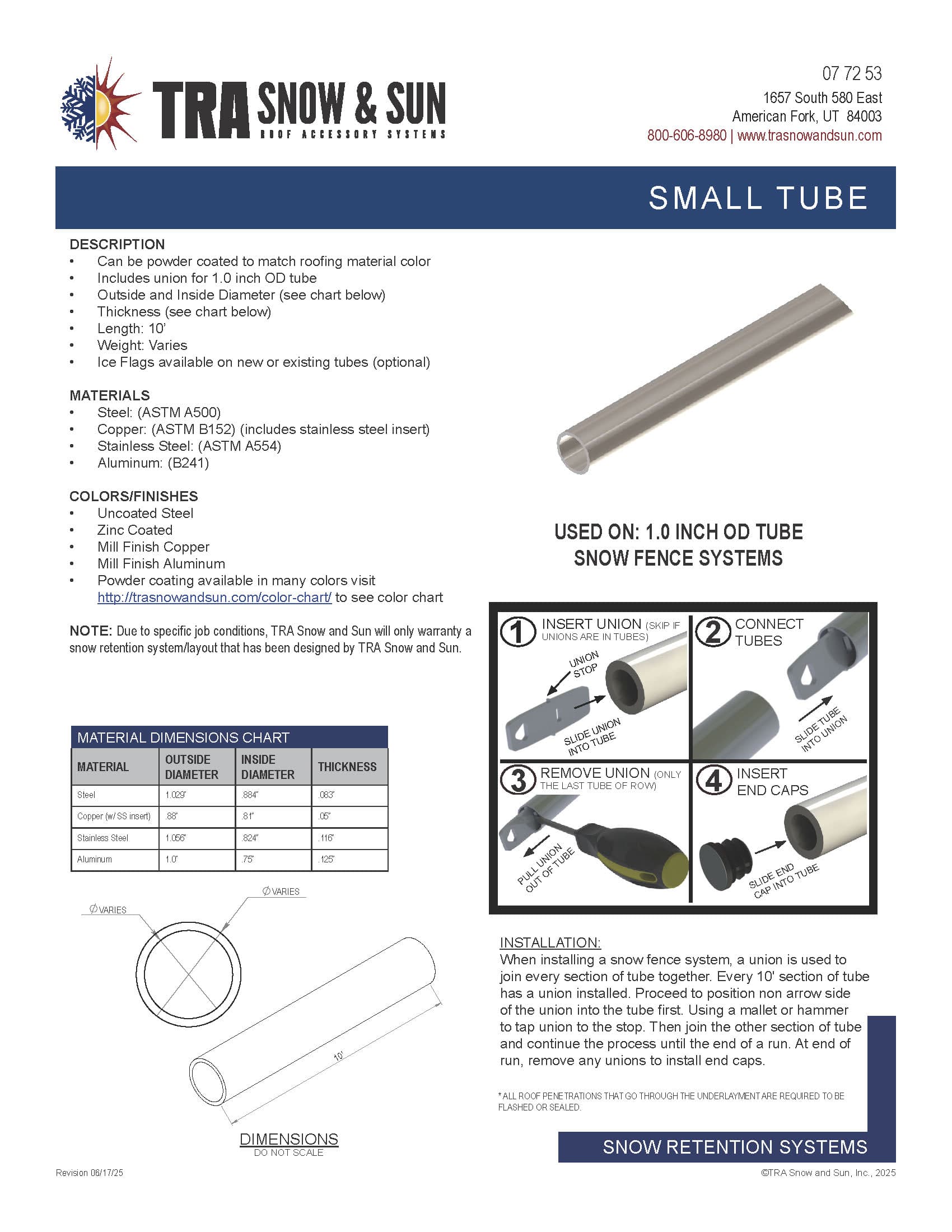

Small Tube (.pdf)



Small Collar (.pdf)

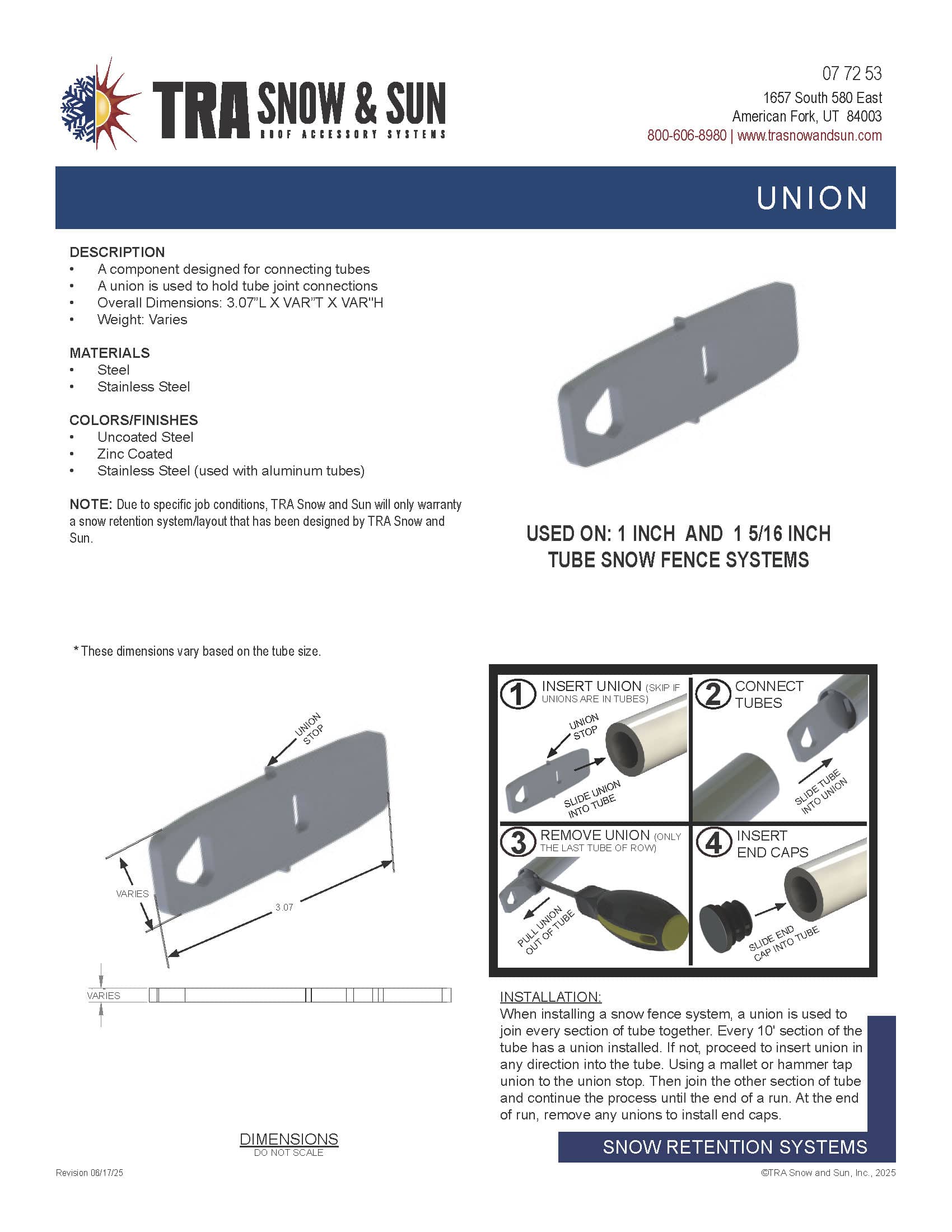

Small Union (.pdf)



Small End Cap (.pdf)

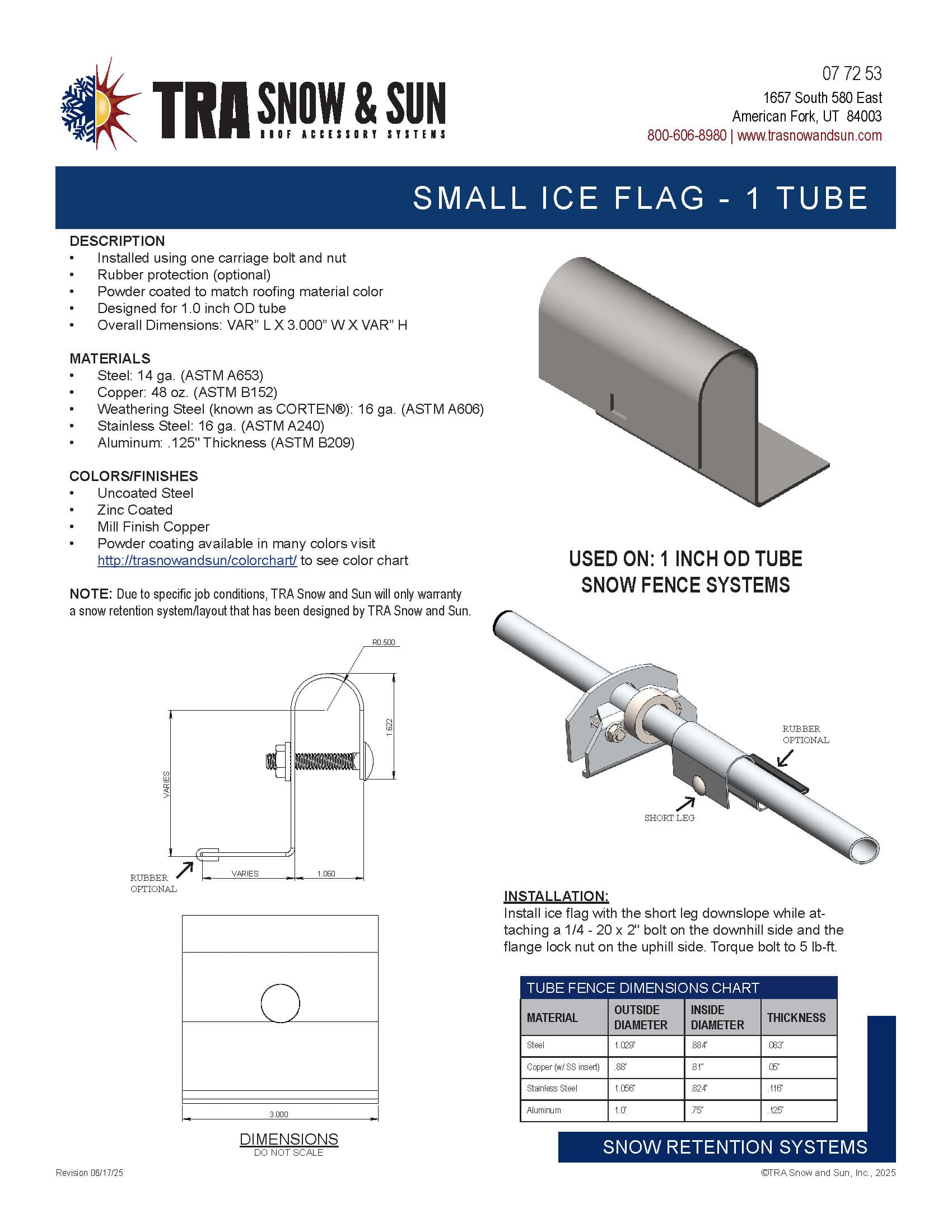

Small Ice Flag (Tube 1) (.pdf)

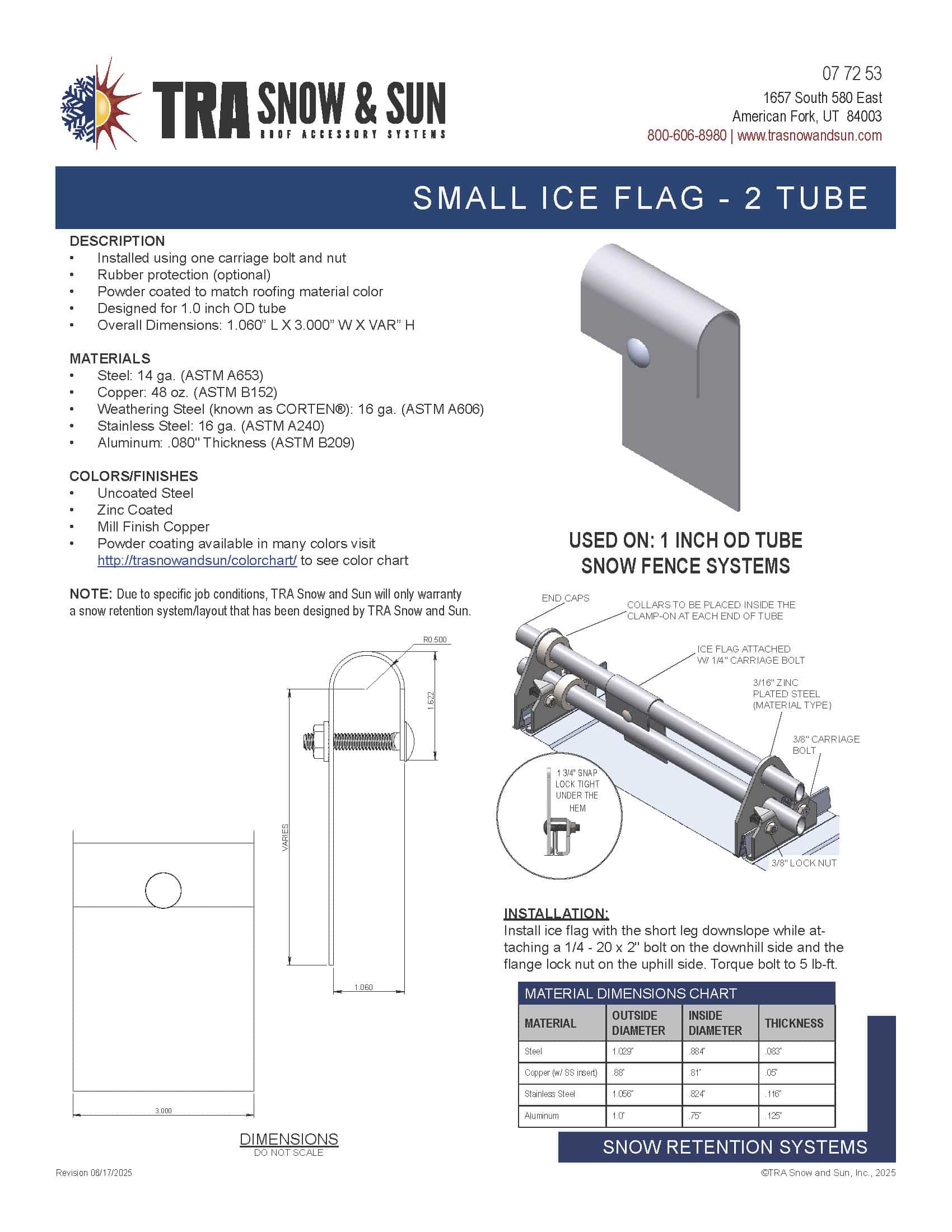

Small Ice Flag (Tube 2) (.pdf)

Videos
