Snow Blocker 3 Deck Mount Snow Fence

Description

Easy Installation

Engineered and Tested

3 Rail

Used on: Most roof types

• New construction or retrofit

• Fastens directly to sheathing, blocking, rafters/trusses, or purlin structures

• Can be powder coated to match roofing material colors

• Ice Flags (recommended)

• Butyl applied under the snow blocker (optional)

• Designed for 1.0″ OD tube

• Overall dimensions: 4.45″L X 1.75″W X 7.32”H





Custom Designs and Engineering

At TRA Snow and Sun we engineer and layout each project free of charge using many factors specific to your roof. We then provide you with the snow retention plan, layout and product details. TRA Snow and Sun representatives will work with you to design the most efficient snow retention system. Fill out our Snow Retention Checklist to get started.

All Standing Seam Snow Fences have been tested from the fail point of the system.

Materials

• Steel: 3/16” (ASTM A1011 & ASTM A36)

• Copper: 1/4” (ASTM B152)

• Weathering Steel (known as CORTEN®): 3/16” (ASTM A588 & ASTM A606)

• Stainless Steel: 7 gauge (ASTM A304)

Colors/ Finishes

• Uncoated Steel

• Zinc Coated

• Powder coating available in many colors

Product (Downloads)

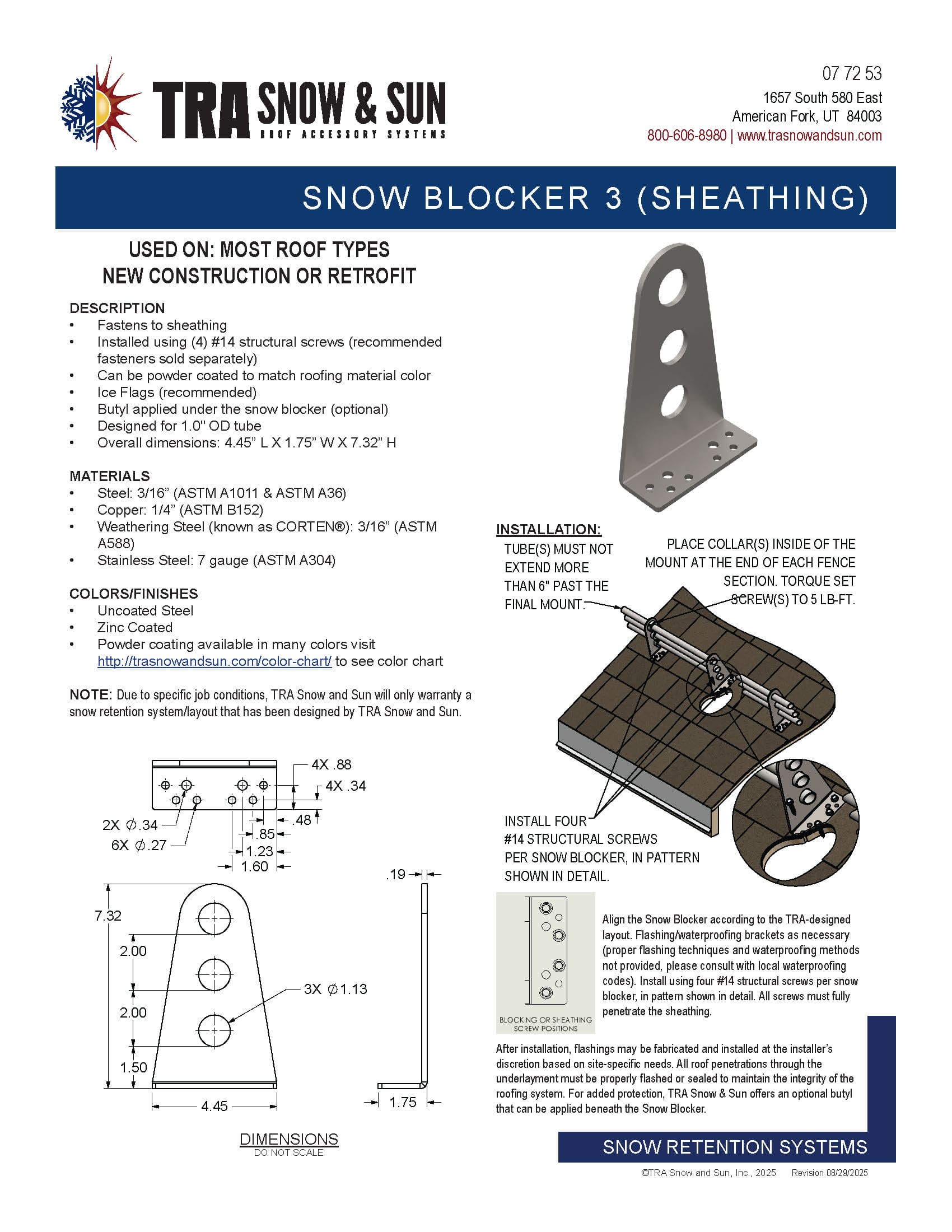

Snow Blocker 3 (Sheathing) Product Date Sheet (.pdf)

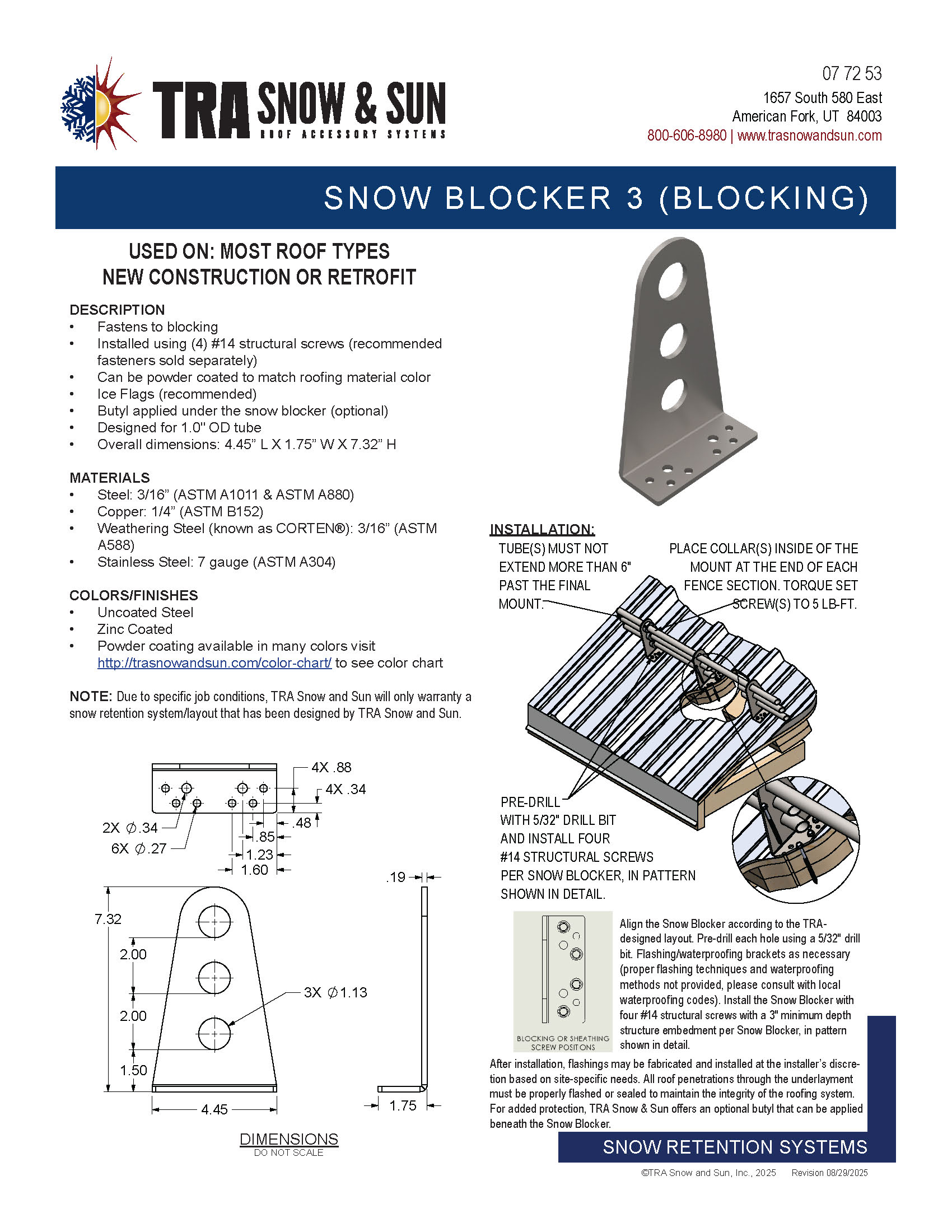

Snow Blocker 3 (Blocking) Product Date Sheet (.pdf)

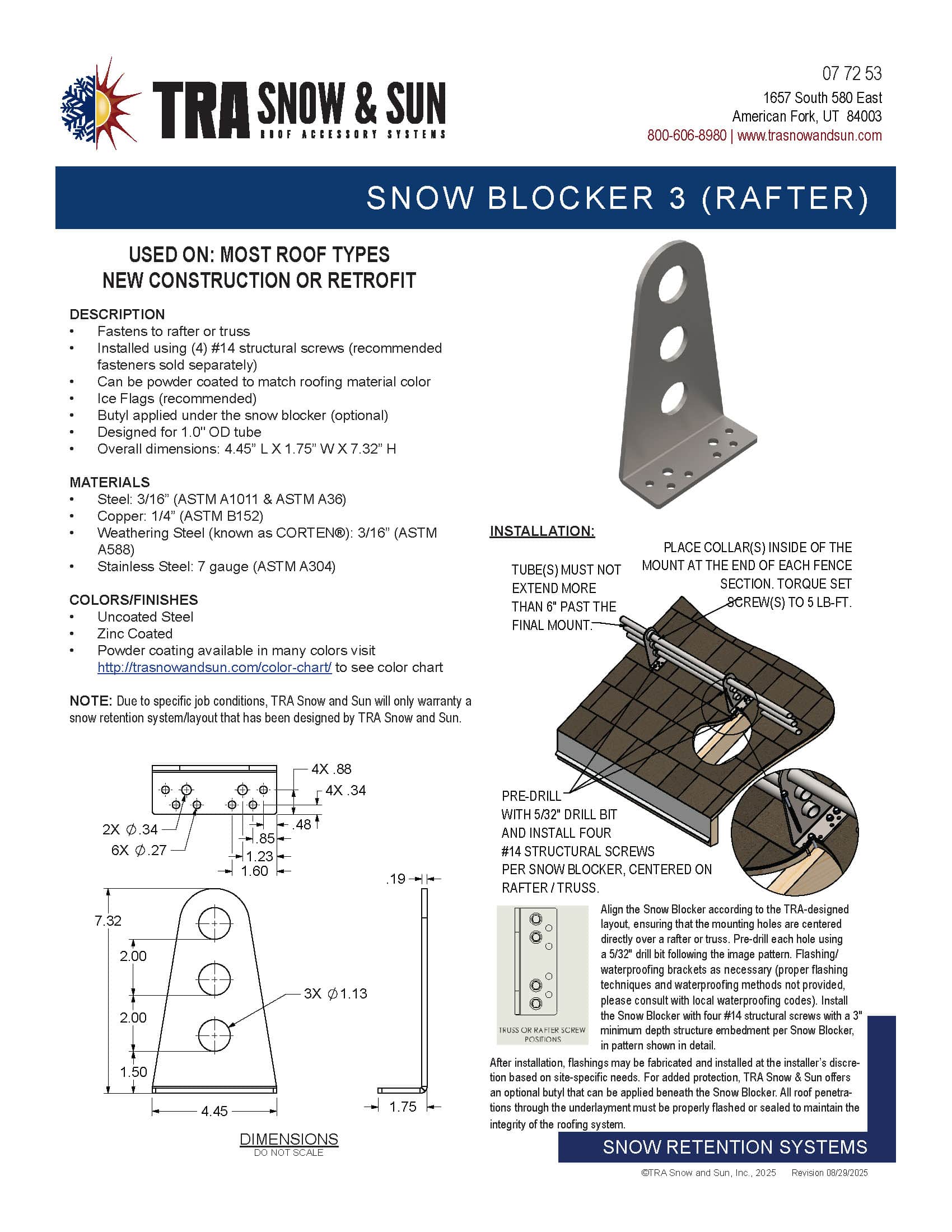

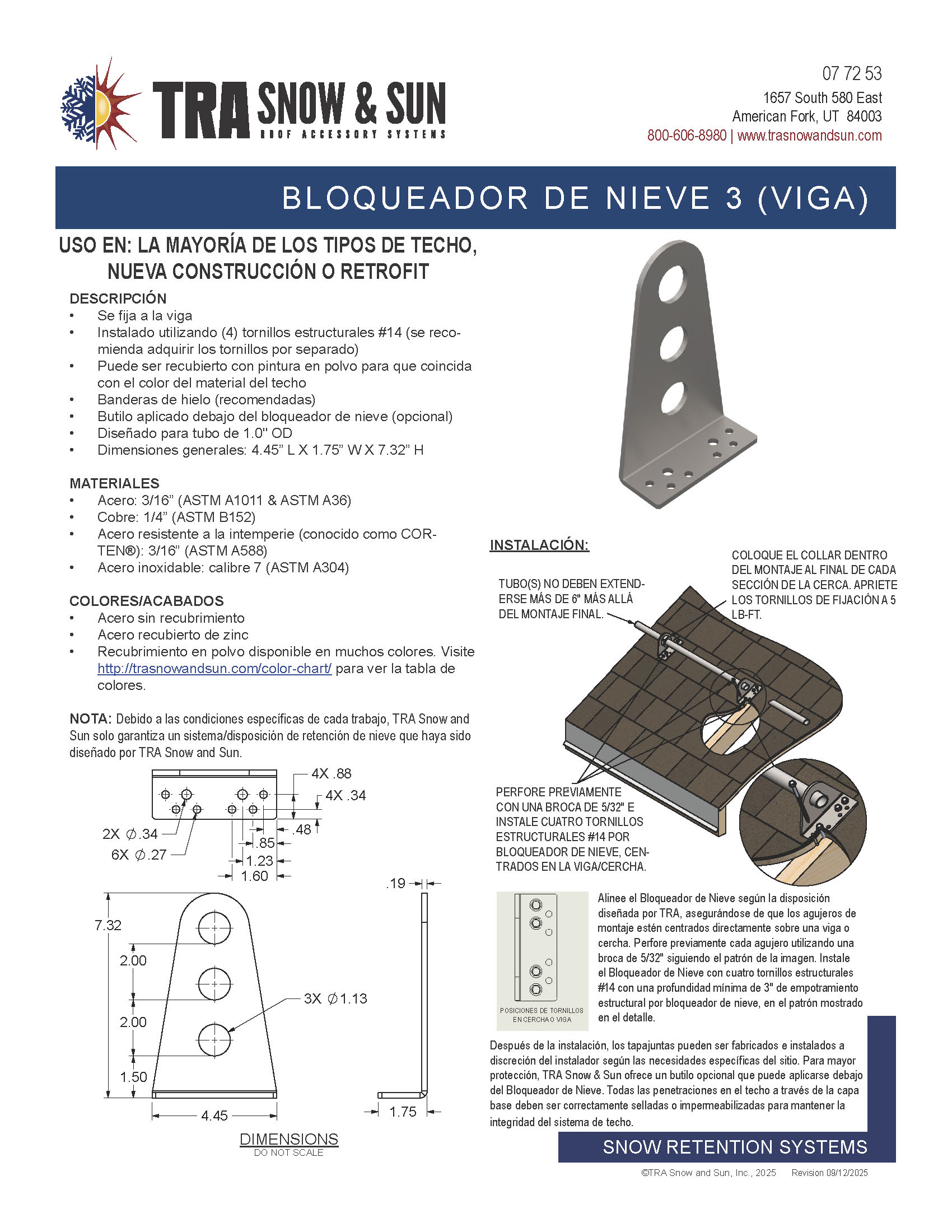

Snow Blocker 3 (Rafter) Product Date Sheet (.pdf)

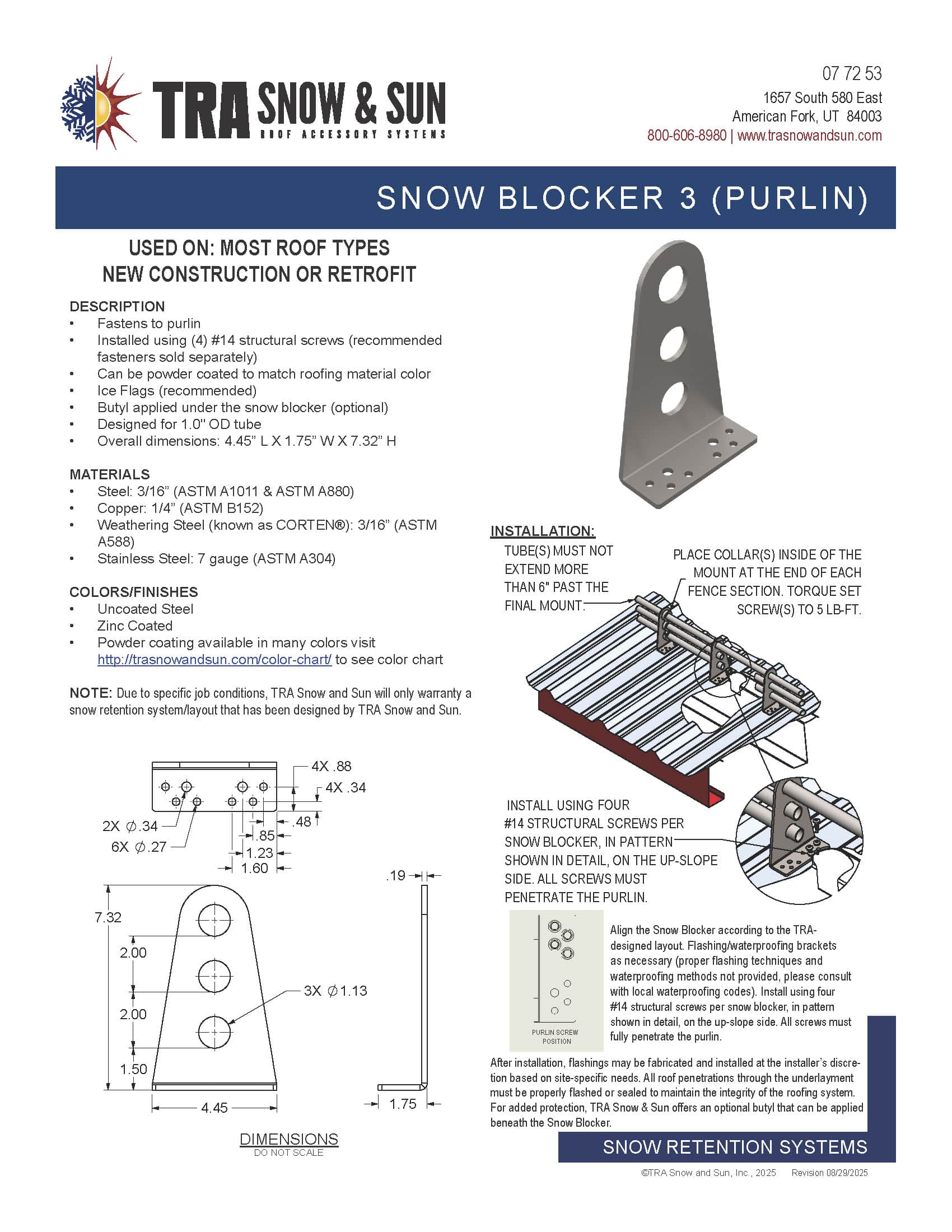

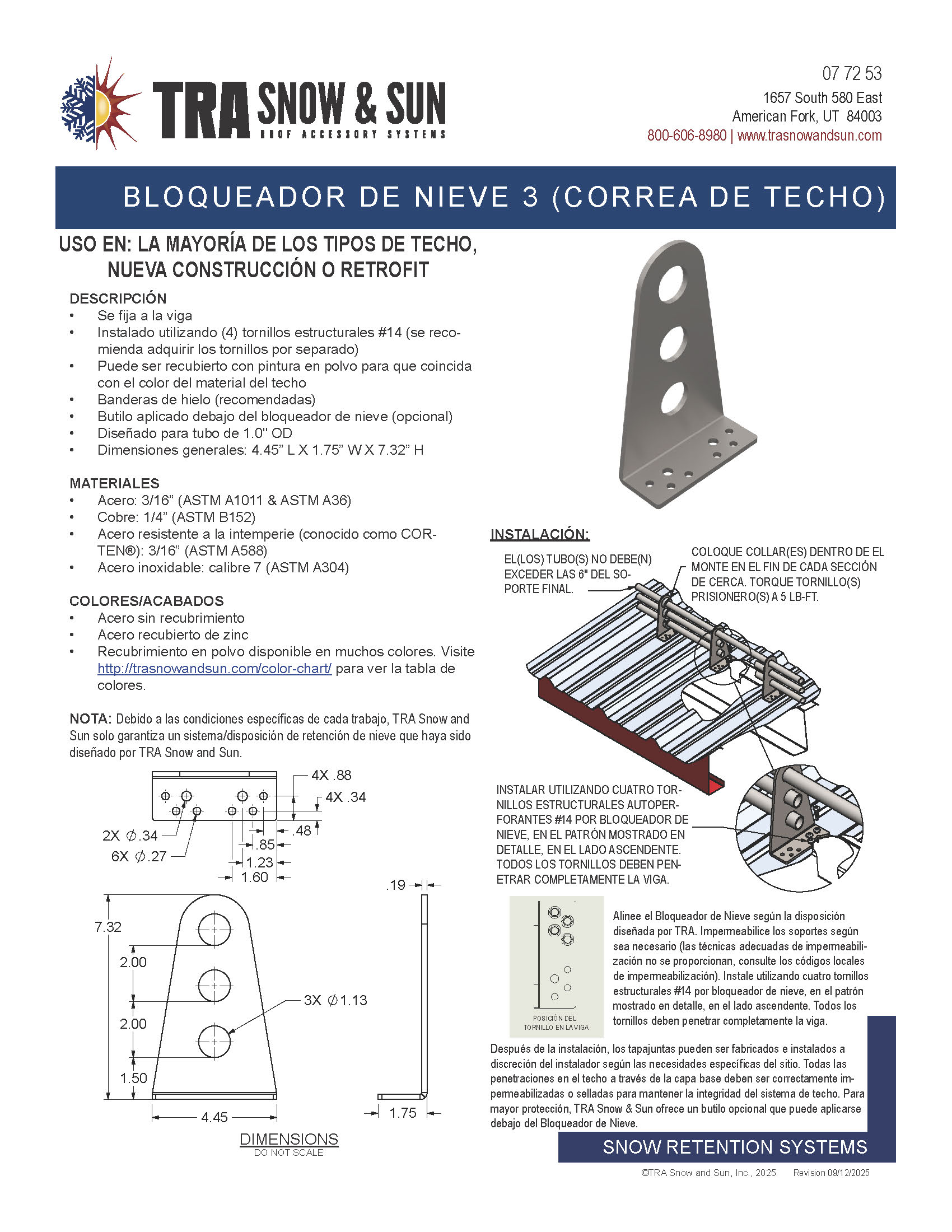

Snow Blocker 3 (Purlin) Product Date Sheet (.pdf)

Product Specification (.docx)

Accessories

Small Tube (.pdf)

Small Collar (.pdf)

Small Union (.pdf)

Small End Cap (.pdf)

Small Ice Flag (Tube 1) (.pdf)

Small Ice Flag (Tube 2) (.pdf)
