Description
Easy Installation
Engineered and Tested

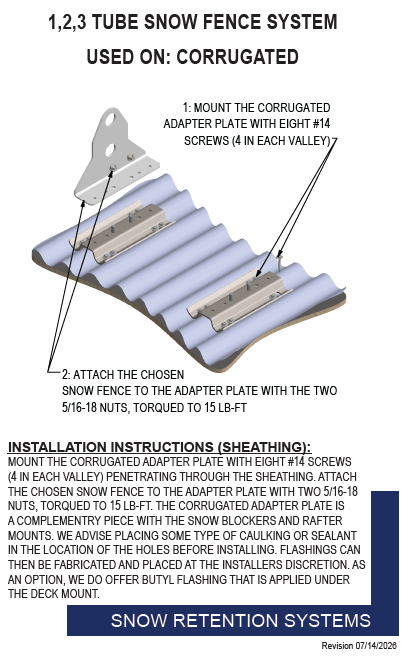

1, 2, 3 Rail

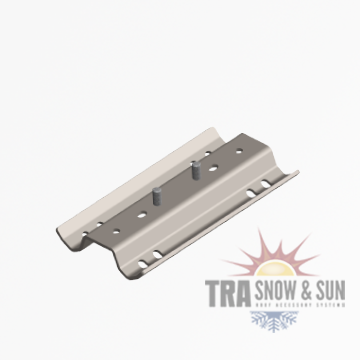

Used on: Corrugated Metal Panel
• New construction or retrofit
• Fastens directly to sheathing, rafter, truss and purlin
• Installed using (8) #14 screws (recommended fasteners sold separately)
• Complementry pieces with Corrugated Adapter Plate are the Snow Blockers or Rafter Mounts (nuts provided)
• Ice Flags (recommended)
• Butyl applied under the snow blocker (recommended)
• Designed for 1.0″ OD tube
• Can be powder coated to match roofing material colors
• Overall dimensions: 8.00″L X 4.28″W X 1.63”H
• All roof penetrations that go through the underlayment are required to be flashed or sealed
Custom Designs and Engineering
At TRA Snow and Sun we engineer and layout each project free of charge using many factors specific to your roof. We then provide you with the snow retention plan, layout and product details. TRA Snow and Sun representatives will work with you to design the most efficient snow retention system. Fill out our Snow Retention Checklist to get started.
Are snow retention systems are tested from the fail point of the system.
