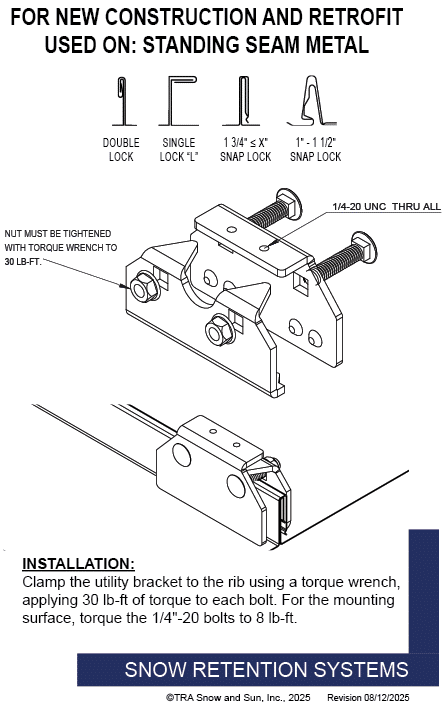

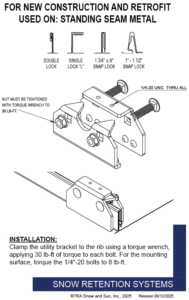

Utility Clamp-on

Description

Secure Attachment

No Set Screws

No Panel Penetration

Used on: Standing Seam Metal Roofs



• Available for all rib types including: Double Lock, Single Lock,  1″ Snap Lock, and 1-3/4″ Snap Lock

• Allows for full installation without any penetration of the roof surface

• 3/8” Dia X 1-3/4” or 2” carriage bolt (2)

Are you struggling to find a solution that will help mount to a standing seam roof?  Our system is quick and easy to install and protects your roofing product without voiding the manufacturer’s warranty.

TRA’s Utility Clamp is the perfect application when doing: light fixtures, condensate lines, fascias, antennas, roof walkways, HVAC equipment, cabling, equipment screens, signs, banners, electrical conduit, stack/flue bracing and more!

TRA Snow and Sun’s Utility Clamp-on’s are recognized for their quality and strength.   Our Utility Clamp-on fits most standing seam profiles using a safe, reliable, and attractive design.  Our exclusive attachment system, using under-the-hem clamping and bolting, provides superior strength while maintaining your manufacturer’s warranty.  And we are pleased to say that they are manufactured in the USA.

Additional information

Finish Type

Painted, Zinc Plated

Materials

Steel 3/16" (ASTM A36)

Decorative Enhancements

Clamp-On

Construction Type

New Construction, Retrofit

Roof Types

Standing Seam Metal

Product Type

Bracket/Standing Seam Clamp, Standing Seam Clamp

Dimensions

Length: 4.45″

Width: 1.24″

Height: Varies based on seam profile

Materials

• Steel: 3/16” (ASTM A36)

Colors/ Finishes

• Mill finish steel (Raw)

• Zinc plated steel

Product (Downloads)
