D3H Deck Mount Snow Fence

Description

Secure Attachment

Custom Designs Available

Heavy Duty

Used on: Asphalt Shingles, Cedar Shingles, Flat Seam Metal, Granule Metal, Metal Panel, Slate, Simulated Slate, Tile Roofs, and Wood Shakes

• Designed for most stick framed roof types

• Accepts 1” (1.315”OD) fence tube

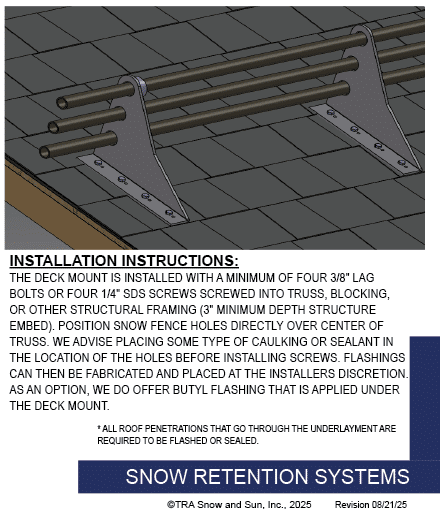

• Installed using (4) 3/8” Lag bolts or (4) 1/4″ SDS screws

• Must be installed into structural roof member such as a truss or rafter beam

• Ice Flags (recommended)

• Powder coated to match roofing material color

• Overall dimensions: 12″L X 2″W X 10.38”H





Custom Designs and Engineering

At TRA Snow and Sun we engineer and layout each project free of charge using many factors specific to your roof. We then provide you with the snow retention plan, layout and product details. TRA Snow and Sun representatives will work with you to design the most efficient snow retention system. Fill out our Snow Retention Checklist to get started.

All Standing Seam Snow Fences have been tested from the fail point of the system.

Materials

• Zinc Coated Steel: 3/16” (ASTM A1011 & ASTM A36)

• Copper: 1/4” (ASTM B152)

• Weathering Steel (known as CORTEN®): 1/4” (ASTM A588)

Colors/ Finishes

• Uncoated Steel

• Zinc Plated Steel

• Mill Finish Copper

• Mill Finish A588

• Powder coating available in many colors



Product (Downloads)

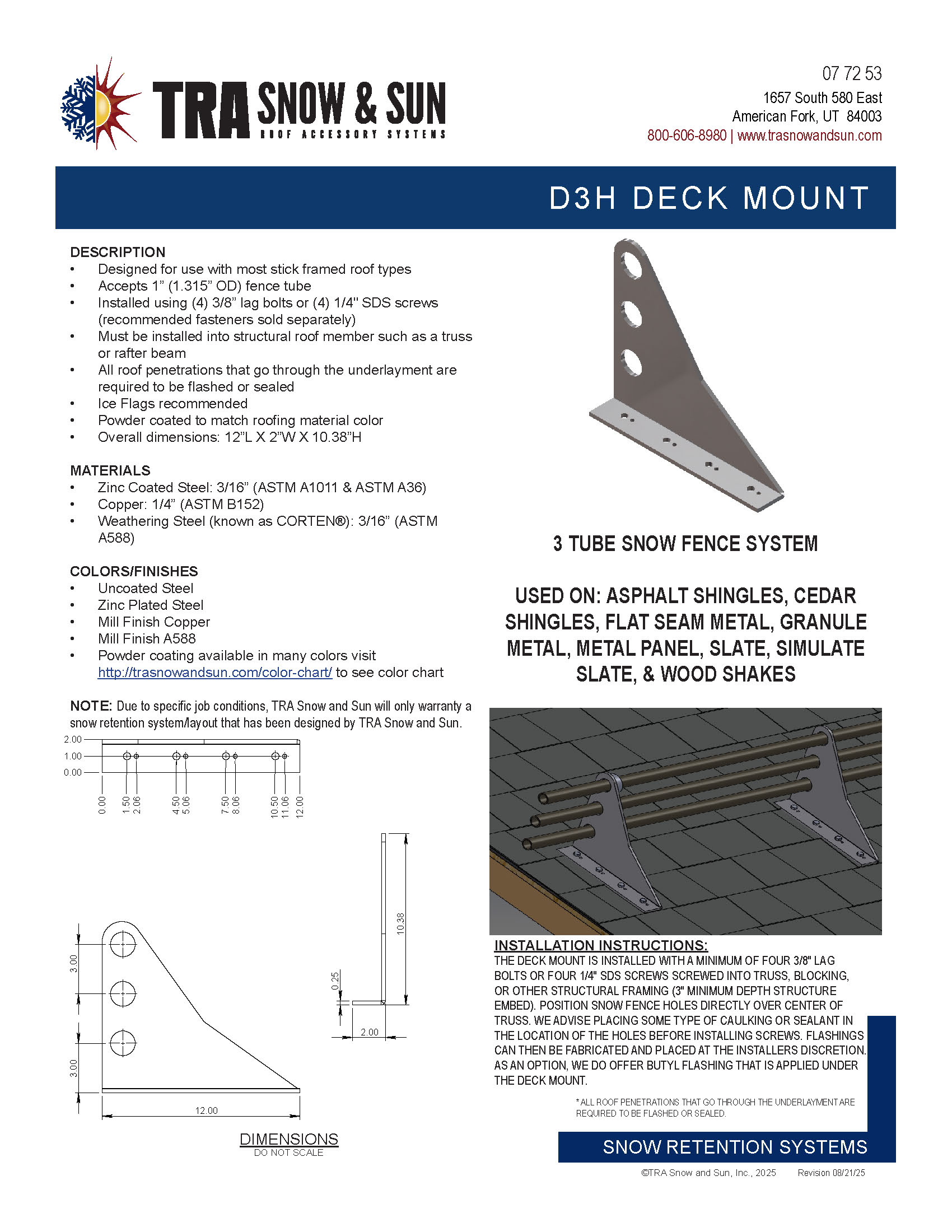

Product Data Sheet (.pdf)

Product Specification (.docx)

Accessories

Large Tube (.pdf)

Large Collar (.pdf)

Large Union (.pdf)

Large End Cap (.pdf)

Large Ice Flag (Tube 1) (.pdf)

Large Ice Flag (Tube 2) (.pdf)

Videos
